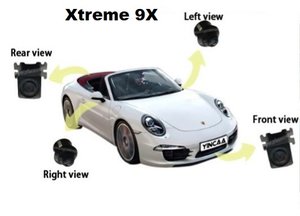

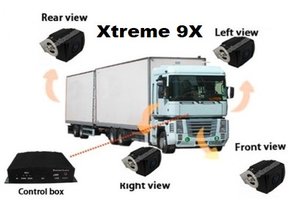

With Xtreme 9X, Altracore has made a huge leap in their tracking technology. With our 360⁰ bird eye viewing technology, we blend images from multiple cameras to create a real 3-D view of vehicles surroundings. Normal multi-camera technologies often stitch two dimensional images together resulting in distorted views. Our technology ensures flexible Omni-directional monitoring around a vehicle from a dynamically customizable perspective. This state of the art vehicle monitoring technology aids vehicle safety by providing visual support to the driver.

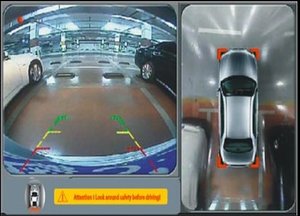

Our bird eye viewing technology gives the driver a combination of images from each camera in a smooth and sharp 360 view thereby improving visibility and eliminating blind spots.
Altracore 360° Birdeye Viewing Technology helps vehicle safety by providing visual support to the driver. With improved visibility, our technology eliminates "blind spots".

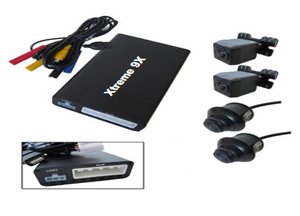

Request a Demo- The wide angle 180 Degree fish-eye camera
- Clear, fast and smooth HD image quality
- Seamless panoramic image with no blind spot
- Auto calibration
- 28 hours continuously recording

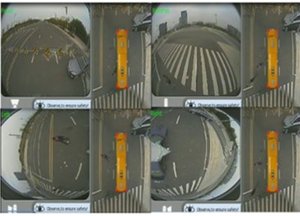

- Real time monitoring with multi direction video images
| Image Sensor | PC1089N | ||
| Supply Voltage | 12V (8-30V) | ||
| Optical Size | 1/3" | ||
| Consumption Current | <500 | ||
| Pixel Pitch | 6.35um*7.4um | ||
| Water Proof | IP67 | ||
| Effective Pixels | 720 H * | ||
| Video Format | Pal/NTSC | ||
| S/N Ratio | >48dB | ||
| Dynamic Range | >72dB | ||
| Auto Electronic Exposure | Electronic Rolling Shutter | ||
| Minimum Illumination | 0.1 | ||
| View Angle | 180 | ||
| View Output | 1.0VP-P/75 Ω |
