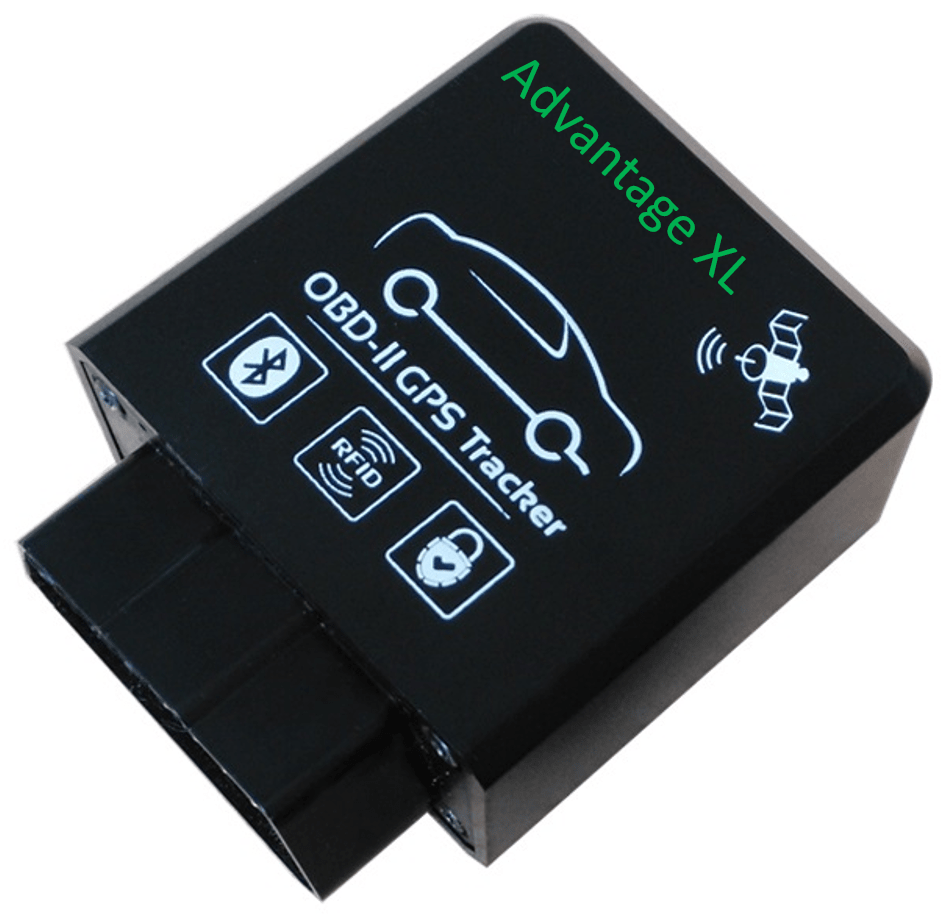

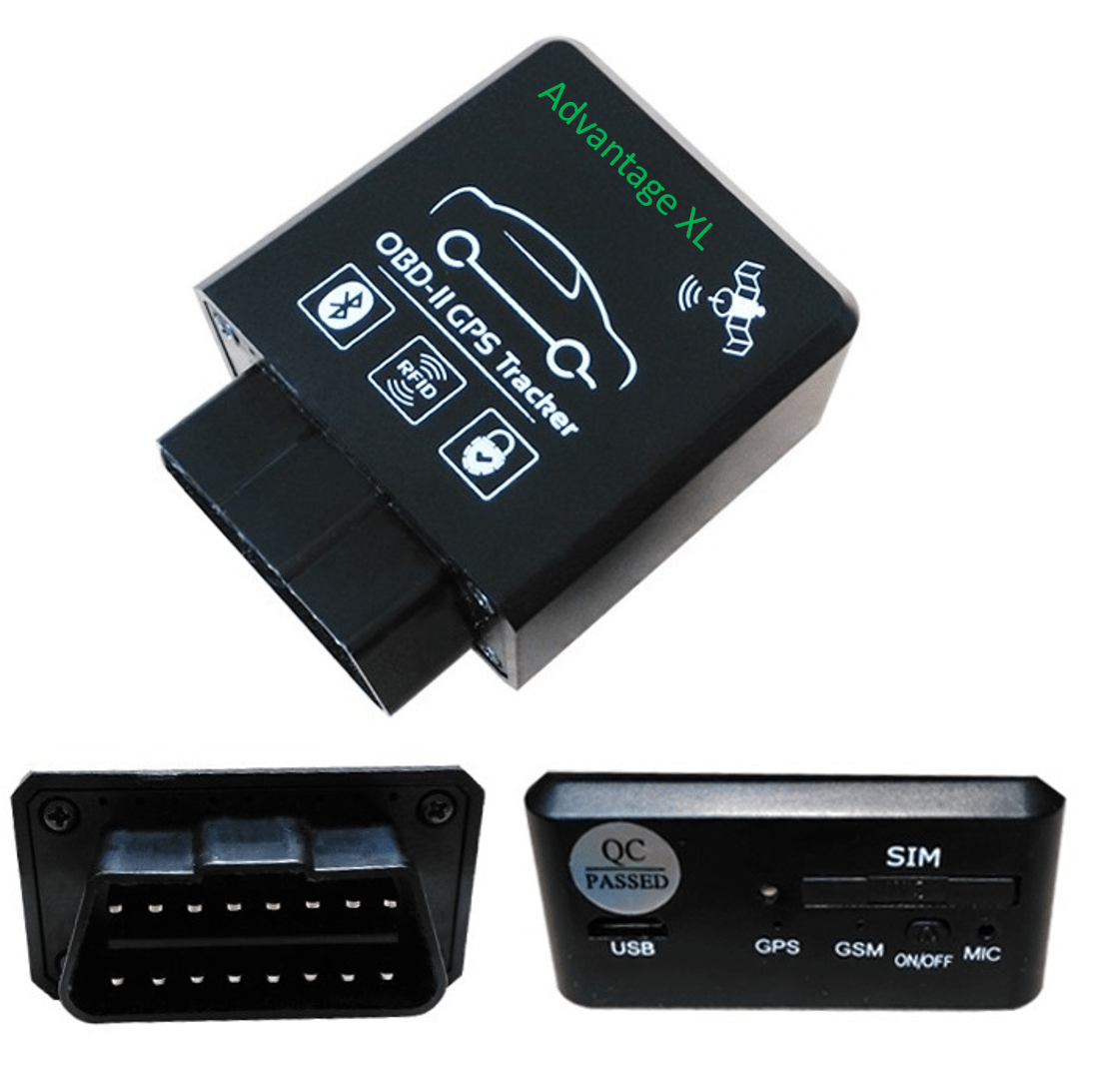

Advantage XL is a multifunctional plug & play design with RFID car alarm. The device will read data from vehicle ECU via CAN-BUS. It’s simple keyless alarm system powered by 2.4Ghz RFID technology for easy installation.
It supports protocol ISO9141-2, KWP2000_5BPS, KWP2000_FAST, CANBUS_11B_500K, CANBUS_29B_500K, CANBUS_11B_250K, CANBUS_29B_250K.
- Long standby time
- Single/multiple location tracking
- Over-speed, low power, tremble and parking alarm
- Geofence monitoring
- Long standby time (more than 3 months)
- Single/multiple location tracking
- Over-speed, Low power, Tremble, Parking Alarm
- Geofence
- GPRS (TCP/UDP)
- SOS Alarm
- Engine power cut off
- Support SMS
- Sleep mode
| Dimension | 122mm * 81mm * 30.8mm |
| Power Supply | 5V-36V |
| Backup Battery | 4500mAh/3.7V-4.2V |
| USB Charge | 5V |
| Charging Time | Aprox. 6 hrs |
| Standby Time | More than 3 months |
| Humidity | Upto 75% non-condensing |
| Position Accuracy | 10-15 meters |
| GSM Frequency | Quad-band (850/900/1800/1900 Mhz) |
| LED | 3 LEDs indicator (GSM/GPS/Charge) |
| Button | 2 Buttons SOS and A button |
| Interface | 2 digital input (1 Positive, 1 negative), 2 digital output, 1 analog input |
